Magnetic transducers

ATEX version · 4-20 mA output

In installations requiring the intrinsic safety (ia) protection method, these level transducers can be installed as long as they are connected to the corresponding isolators. The category and area of use correspond to those assigned by the barrier/isolator.
CONFIGURATOR:
Power supply
24 VDC
Process connection
2"G
Float
Ø52x52 B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Top screw. 2" G. SS AISI316 (1.4401)
· Electrical connection: Connection housing. EEx d llC T6. Aluminium
· Length: 150..2500 mm
· Float: Cylindrical ø52x52 mm. SS AISI316 (1.4401)
· Temperature: -20..+100 ºC
· Pressure: 30 kg/cm²
CONFIGURATOR:
Power supply
24 VDC
Process connection
DN50
Float
Ø52x52 B
The float must be smaller in diameter than the process connection.
Step between readings
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995


· Process connection: Flange DIN. DN 25..DN 100. SS AISI316 (1.4401)
· Electrical connection: Connection housing. EEx d IIC T6. Aluminium
· Length: 150..2500 mm
· Float: Cylindrical ø52x52 mm. SS AISI316 (1.4401)
· Temperature: -20..+100 ºC
· Pressure: 30 kg/cm²
CONFIGURATOR:
Power supply
24 VDC
Process connection
DN100
Float
Ø95 INOX B
The float must be smaller in diameter than the process connection.
Step between readings
10 mm
Length (mm)
The final length is calculated based on different parameters and may be different from that requested.
Zone E (mm)
Separation between the process connection and the electrical connection.
Zone S (mm)
Distance without reading between the process connection and the highest position of the float.
Electrical connection

It remains to be decided
Select a product to display its configuration data
Quantity
Add to cart (+34) 934 560 995

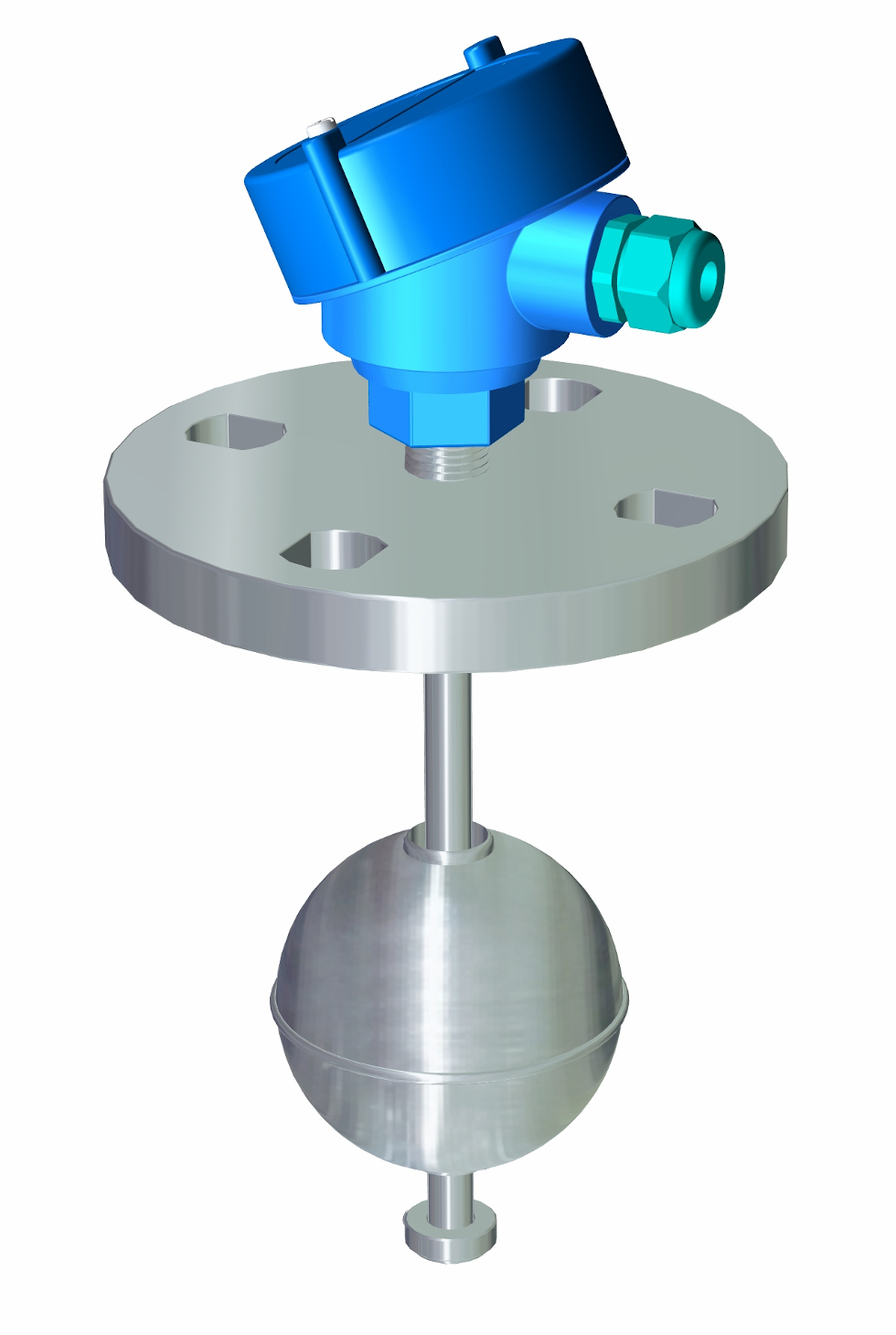

· Process connection: Flange DIN. DN 100. SS AISI316 (1.4401)
· Electrical connection: Connection housing. EEx d IIC T6. Aluminium
· Length: 150..2500 mm
· Float: Spherical ø95 mm. SS AISI316 (1.4401)
· Temperature: -20..+100 ºC
· Pressure: 30 kg/cm²
