Magnetic switches of fixed length

Vous êtes dans: Sensors > Liquids level > Output 0-1 > Magnetic switches > Fix length > Vertical > SS

Vertical mounting · SS

· They are used to control a maximum or minimum level.

· Made in SS AISI316 (1.4401)
· Electrical connection: Silicone cable, 1 meter
· Temperature: -40..+125 ºC
· Protection: IP65
· The length of the guide tube is fixed.
· They have a single contact for maneuver.
· By reversing the position of the float, it also reverses the state of the contact.
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Code
Weight (kg)
Dimensions (mm)
Delivery time
Quantity
Add to cart (+34) 934 560 995


· Process connection: Nipple. 1/8" G. SS AISI316 (14401)
· Length: 40 mm
· Float: Cylindrical ø29x32 mm
· Contacts: (NO) 40W/VA-2A/230VAC/DC
· Density: 0,8 g/cm³
· Pressure: 20 kg/cm²
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Code
Weight (kg)
Dimensions (mm)
Delivery time
Quantity
Add to cart (+34) 934 560 995


· For installation at the tank side
· Process connection: Nipple. 1/8" G. SS AISI316 (14401)
· Length: 40 mm
· Float: Cylindrical ø29x32 mm
· Contacts: (NO) 40W/VA-2A/230VAC/DC
· Density: 0,8 g/cm³
· Pressure: 20 kg/cm²
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Code
Weight (kg)
Dimensions (mm)
Delivery time
Quantity
Add to cart (+34) 934 560 995


· Process connection: Nipple. 1/4" G. SS AISI316 (1.4401)
· Length: 70 mm
· Float: Spherical ø52 mm
· Contacts: (NO) 120W/VA-3A/250VCA/CC
· Density: 0,7 g/cm³
· Pressure: 30 kg/cm²
CONFIGURATOR:
Cable (m)

It remains to be decided
Select a product to display its configuration data
Code
Weight (kg)
Dimensions (mm)
Delivery time
Quantity
Add to cart (+34) 934 560 995

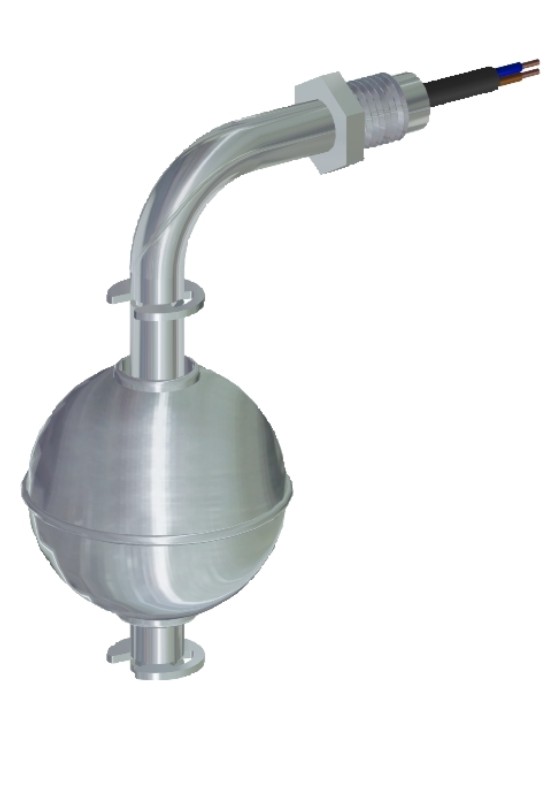

· For installation in the tank side
· Process connection: Nipple. 1/4" G. SS AISI316 (1.4401)
· Length: 70 mm
· Float: Spherical ø52 mm
· Contacts: (NO) 120W/VA-3A/250VAC/DC
· Density: 0,7 g/cm³
· Pressure: 30 kg/cm²
