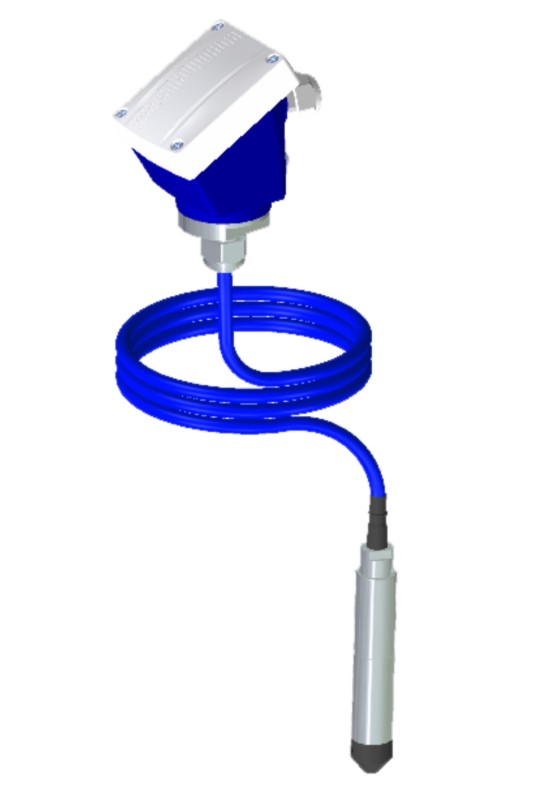

· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
· Ceramic sensor of high precision and long-term stability
· Supply voltage: 10..35 VDC
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for clean water or liquid without impurities
· General application and wells
· Manufactured in SS AISI316-L (1.4404). ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar. Optional 125 mBar (BP)
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for clean water or liquid without impurities. Special for wells
· Manufactured in SS AISI316 (1.4401). ø18 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/20 bar
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Specifications for low pressure
· Manufactured in SS AISI316L (1.4404). ø40 mm
· Process connection: 1/2" BSP
· Electrical connection: Cable, 3 meters
· Ranges: 0/50..0/200 mbar
· Temperature: -5..+70 °C
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for diesel and liquids without impurities
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Thread ½" BSP
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar
+ Documentation
· Data sheet
· User manual
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for aggressive liquids and chemicals
· Manufactured in PP. ø23 mm
· Process connection: Thread 1/4" BSP
· Electrical conneciona: Cbale, 10 meters
· Ranges: 0/0,25..0/10 bar
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for wastewater or liquids with non solid impurities
· Outcropping membrane
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Thread 1/2" BSP
· Ranges: 0/0,25..0/40 bar
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for wastewater or liquids with solid impurities
· Outcropping membrane
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar. Optional 125 mBar (BP)
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for wastewater or viscous liquids
· Outcropping membrane
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar
+ Documentation
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for wastewater or viscous liquids
· Manufactured in PP. ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/10 bar
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for wastewater or marine waters
· Manufactured in PP. ø23 mm
· Process connection: Thread 1/2"BSP
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/10 bar
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
CONFIGURATOR:
Output
4-20 mA
O-ring
Units
Range
If you know the value in other units, use the [Pressure Converter] in the product file.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Suitable for wastewater or marine waters
· Manufactured in PP. ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/10 bar. Optional 125 mBar (BP)
+ Documentation
· Data sheet
· User manual
· Declaration of conformity CE
· Safety, installation and maintenance instructions
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
PABA -PABB -DABA -DABB -SABA -SABB -SAB
PAFA -DAFA -SAFA -SAB
PADA -PADB -DADA -DADB -SADA -SADB -SAD
PAHA -DAHA -SAHA -SAD
SAD
· Control of the current in DC lines
by means of external shunt
· Rank: 10..100 mV
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
SAB
· Control of the current in DC lines
· Rank: 0,04 mA..10 A in 6 ranges
· Timing 0,01 S..999,9 H
· All input parameters are configurable
· Three configurable output relays
· LCD graphic screen
+
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· They are used to obtain a continuous reading of the liquid level.
· Used in pump control, level measurement, wells, etc.
· They are installed in the upper part of the container, held by the cable itself, until reaching the lowest point of measurement.
-Technical data
· Adapter for installing a pressure sensor with top screw and connection housing
· Process connection: screw cap. Any measure from 1/2"G. SS AISI316 (1.4401) or PVC
· Electrical connection: Connection housing. PBT
· Protection: IP67
+ Documentation
· Data sheet
· Safety, installation and maintenance instructions
· Declaration of conformity CE
+Ordering
· Choose the sensor as the maximum pressure to bear, the process connection for your installation and the material it is made.
· Determine the pressure to be controlled in function of the tank height and the density of the liquid. Use the Units converter if you need help.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to operate, refer to Table of chemical resistance.
+Table of chemical resistance
Substance
Other names
+Convertisseur de presion
Quantity
Unit
Density
Decimals
Bar
0,10
mBar
98,06
Kg/cm²
0,10
PSI
1,42
m.c.a.
1,00
+Related products
TPSM 40
· Suitable for clean water or liquid without impurities
· General application and wells
· Manufactured in SS AISI316-L (1.4404). ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar. Optional 125 mBar (BP)
TPSM 41
· Suitable for clean water or liquid without impurities. Special for wells
· Manufactured in SS AISI316 (1.4401). ø18 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/20 bar
TPSM 51
· Specifications for low pressure
· Manufactured in SS AISI316L (1.4404). ø40 mm
· Process connection: 1/2" BSP
· Electrical connection: Cable, 3 meters
· Ranges: 0/50..0/200 mbar
· Temperature: -5..+70 °C
TPSM 54
· Suitable for diesel and liquids without impurities
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Thread ½" BSP
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar
TPSM 59
· Suitable for aggressive liquids and chemicals
· Manufactured in PP. ø23 mm
· Process connection: Thread 1/4" BSP
· Electrical conneciona: Cbale, 10 meters
· Ranges: 0/0,25..0/10 bar
TPSM 64
· Suitable for wastewater or liquids with non solid impurities
· Outcropping membrane
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Thread 1/2" BSP
· Ranges: 0/0,25..0/40 bar
TPSM 65
· Suitable for wastewater or liquids with solid impurities
· Outcropping membrane
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar. Optional 125 mBar (BP)
TPSM 66
· Suitable for wastewater or viscous liquids
· Outcropping membrane
· Manufactured in SS AISI316 (1.4401). ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/40 bar
TPSM 76
· Suitable for wastewater or viscous liquids
· Manufactured in PP. ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/10 bar
TPSM 77
· Suitable for wastewater or marine waters
· Manufactured in PP. ø23 mm
· Process connection: Thread 1/2"BSP
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/10 bar
TPSM 79
· Suitable for wastewater or marine waters
· Manufactured in PP. ø23 mm
· Process connection: Hanging by the cable
· Electrical connection: Cable, 10 meters
· Ranges: 0/0,25..0/10 bar. Optional 125 mBar (BP)
TPSM TB
· Adapter for installing a pressure sensor with top screw and connection housing
· Process connection: screw cap. Any measure from 1/2"G. SS AISI316 (1.4401) or PVC
· Electrical connection: Connection housing. PBT
· Protection: IP67
