Solids level · Output 0-1

Vous êtes dans: Sensors > Solids level > Output 0-1 > Vibrating sensors

Vibrating sensors

· Suitable for level detection in solid, granular or powder.

· Made with SS AISI304
· Output: Relay SPDT 5A / 250VAC
· Adjustable sensitivity
· Temperature (housing): -20..+60ºC
· Pressure: 10 bar
· Protection: IP66

It remains to be decided
Select a product to display its configuration data
Code
Dimensions (mm)
Quantity
Add to cart (+34) 934 560 995


· For products of medium density (> 50 g/l) and with low humidity
· Process connection: Top screw 1"G
· Electrical connection: Connector DIN 43650
· Power supply: 24 VAC/DC
· Temperature: -20..+70 ºC

It remains to be decided
Select a product to display its configuration data
Code
Quantity
Add to cart (+34) 934 560 995


· For products of medium density (> 50 g/l)
· Process connection : Top screw 1"G
· Electrical connection: Connection housing. Aluminium
· Power supply: 20..250 VAC/DC
· Temperature: -20..+70 ºC

It remains to be decided
Select a product to display its configuration data
Code
Dimensions (mm)
Quantity
Add to cart (+34) 934 560 995


· For products of medium density (> 50 g/l)
· Process connection : Top screw 1" G
· Electrical connection: Connection housing. Aluminium
· Power supply: 20..250 VAC/DC
· Temperature: -20..+70 ºC
· ATEX Group II, Category 1/2 D (dust), Zones 20, 21 and 22

It remains to be decided
Select a product to display its configuration data
Code
Quantity
Add to cart (+34) 934 560 995


· For extremely lightweight products
· Process connection: Top screw 1"1/2 G. NPT
· Electrical connection: Connection housing. Aluminum
· Power supply: 20..250 VAC/DC
· Temperature: -20..+780 ºC

It remains to be decided
Select a product to display its configuration data
Code
Quantity
Add to cart (+34) 934 560 995


· For extremely lightweight products
· Process connection: Top screw 1"1/2 G. NPT
· Electrical connection: Connection housing. Aluminum
· Power supply: 20..250 VAC/DC
· Temperature: -20..+780 ºC
· ATEX Group II, Category 1/2 D (dust), Zones 20, 21 and 22

It remains to be decided
Select a product to display its configuration data
Code
Quantity
Add to cart (+34) 934 560 995

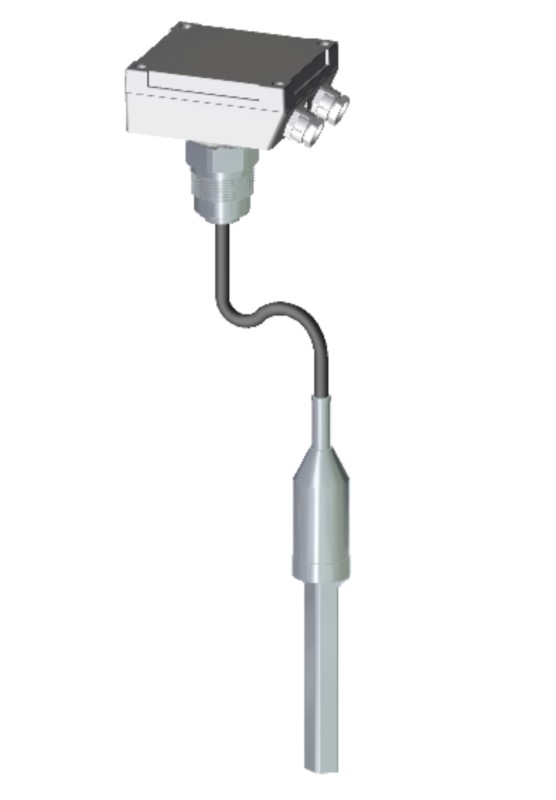

· For extremely lightweight products
· Extending up to 20 m
· Process connection: Top screw 1"1/2G. NPT
· Electrical connection: Connection housing. Aluminum
· Power supply: 20..250 VAC/DC
· Temperature: -20..+80 ºC

It remains to be decided
Select a product to display its configuration data
Code
Quantity
Add to cart (+34) 934 560 995


· For extremely lightweight products
· Extending up to 20 m
· Process connection: Top screw 1"½ G. NPT
· Electrical connection: Connection housing. Aluminum
· Power supply: 20..250 VAC/DC
· Temperature: -20..+80 ºC
· ATEX Group II, Category 1/2 D (dust), Zones 20, 21 and 22
