· For the detection of one or more level points.
· Used in maneuvers for filling, emptying, overfill alarm, etc.
· Because of its small size is ideal for tanks with limited space.
· Custom fabrication to suit the installation conditions.
· Made in SS AISI316 (1.4401)
· Length: 50..3500 mm
· Float: Cylindrical ø29x32 mm
· Contacts: (NO) 40W/VA-2A/230VAC/DC
· Contacts:(NC and NO/NC) 20W/VA-1A/150VAC/DC
· Density: 0,71 g/cm³
· Temperature: -40..+125ºC
· Pressure: 15 kg/cm²
CONFIGURATOR:
Version
Internal mode protection
Process connection
Ø52 SS
Float
Ø28X28
The float must be smaller in diameter than the process connection.
Length (mm)
Number of contacts
The number of contacts depends on the operation to be performed.
Number of floats
The number of floats must be equal to or less than the number of contacts.
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· For the detection of one or more level points.
· Used in maneuvers for filling, emptying, overfill alarm, etc.
· Because of its small size is ideal for tanks with limited space.
· Custom fabrication to suit the installation conditions.
· Determine the total length according to the characteristics of the tank and the liquid level you want to control.
· Check that the conditions of pressure and temperature of the installation match with the ones allowed by the model chosen.
· According to the maneuver you wish to perform, determine the amount, location and type of contacts. See Table of Connection Diagrams for more information.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to control, refer to Table of chemical resistance.
· For all options, see the table "Reference" in the technical documentation of the selected model.
+Table of chemical resistance
Substance
Other names
+Related products
PSPS -DSPS -SSPS
· Weak contacts protection
· To be used in instruments with potential free contacts
PSMS -DSMS
· Contact amplifier with two independent inputs
· To be used in devices with potential free contacts
PSIA -DSIA
· Control for detection of turbulences in liquids
· Delay to the level detection
· Control differential maximum and minimum levels by timing
· To be used in devices with potential free contacts
+
CONFIGURATOR:
Version
Internal mode protection
Process connection
Float
Ø28X28
The float must be smaller in diameter than the process connection.
Length (mm)
Number of contacts
The number of contacts depends on the operation to be performed.
Number of floats
The number of floats must be equal to or less than the number of contacts.
Cable (m)
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· For the detection of one or more level points.
· Used in maneuvers for filling, emptying, overfill alarm, etc.
· Because of its small size is ideal for tanks with limited space.
· Custom fabrication to suit the installation conditions.
-Technical data
· Process connection: Clamp flange. 1" and 1"1/2
· Electrical connection: PVC / Silicone cable
· Protection: IP65
+ Documentation
· Data sheet
· User manual
· Configure IMN
· Declaration of conformity CE
· 3D file [.ZIP]
+Ordering
· Determine the total length according to the characteristics of the tank and the liquid level you want to control.
· Check that the conditions of pressure and temperature of the installation match with the ones allowed by the model chosen.
· According to the maneuver you wish to perform, determine the amount, location and type of contacts. See Table of Connection Diagrams for more information.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to control, refer to Table of chemical resistance.
· For all options, see the table "Reference" in the technical documentation of the selected model.
+Table of chemical resistance
Substance
Other names
+Related products
PSPS -DSPS -SSPS
· Weak contacts protection
· To be used in instruments with potential free contacts
PSMS -DSMS
· Contact amplifier with two independent inputs
· To be used in devices with potential free contacts
PSIA -DSIA
· Control for detection of turbulences in liquids
· Delay to the level detection
· Control differential maximum and minimum levels by timing
· To be used in devices with potential free contacts
+
CONFIGURATOR:
Version
Internal mode protection
Process connection
Float
Ø28X28
The float must be smaller in diameter than the process connection.
Length (mm)
Number of contacts
The number of contacts depends on the operation to be performed.
Number of floats
The number of floats must be equal to or less than the number of contacts.
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· For the detection of one or more level points.
· Used in maneuvers for filling, emptying, overfill alarm, etc.
· Because of its small size is ideal for tanks with limited space.
· Custom fabrication to suit the installation conditions.
-Technical data
· Process connection: Clamp flange. 1" and 1"1/2

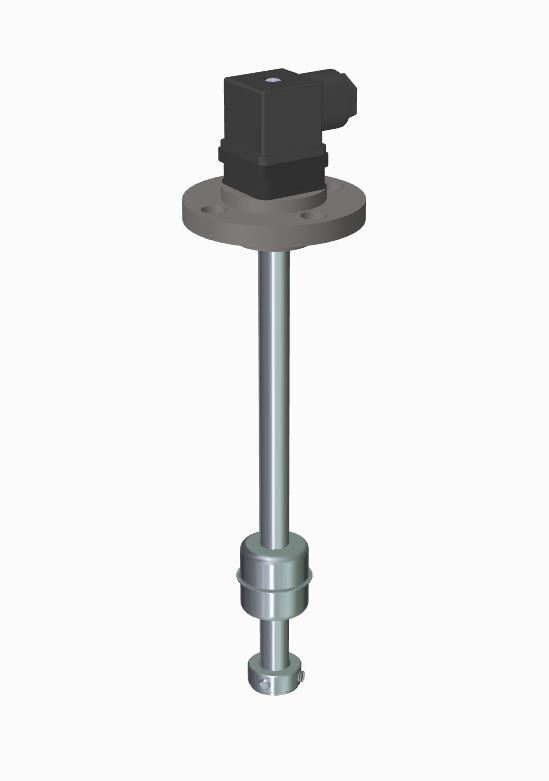

· Electrical connection: Connector DIN43650
· Protection: IP65
+ Documentation
· Data sheet
· User manual
· Configure IMN
· Declaration of conformity CE
· 3D file [.ZIP]
+Ordering
· Determine the total length according to the characteristics of the tank and the liquid level you want to control.
· Check that the conditions of pressure and temperature of the installation match with the ones allowed by the model chosen.
· According to the maneuver you wish to perform, determine the amount, location and type of contacts. See Table of Connection Diagrams for more information.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to control, refer to Table of chemical resistance.
· For all options, see the table "Reference" in the technical documentation of the selected model.
+Table of chemical resistance
Substance
Other names
+Related products
PSPS -DSPS -SSPS
· Weak contacts protection
· To be used in instruments with potential free contacts
PSMS -DSMS
· Contact amplifier with two independent inputs
· To be used in devices with potential free contacts
PSIA -DSIA
· Control for detection of turbulences in liquids
· Delay to the level detection
· Control differential maximum and minimum levels by timing
· To be used in devices with potential free contacts
+
CONFIGURATOR:
Version
Internal mode protection
Process connection
Float
Ø28X28
The float must be smaller in diameter than the process connection.
Length (mm)
Number of contacts
The number of contacts depends on the operation to be performed.
Number of floats
The number of floats must be equal to or less than the number of contacts.
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· For the detection of one or more level points.
· Used in maneuvers for filling, emptying, overfill alarm, etc.
· Because of its small size is ideal for tanks with limited space.
· Custom fabrication to suit the installation conditions.
-Technical data
· Process connection: Clamp flange. 1" and 1"1/2
· Electrical connection: Connection housing. PBT
· Protection: IP67
+ Documentation
· Data sheet
· Module for RS485 output
· User manual
· Configure IMN
· Declaration of conformity CE
· 3D file [.ZIP]
+Ordering
· Determine the total length according to the characteristics of the tank and the liquid level you want to control.
· Check that the conditions of pressure and temperature of the installation match with the ones allowed by the model chosen.
· According to the maneuver you wish to perform, determine the amount, location and type of contacts. See Table of Connection Diagrams for more information.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to control, refer to Table of chemical resistance.
· For all options, see the table "Reference" in the technical documentation of the selected model.
+Table of chemical resistance
Substance
Other names
+Related products
PSPS -DSPS -SSPS
· Weak contacts protection
· To be used in instruments with potential free contacts
PSMS -DSMS
· Contact amplifier with two independent inputs
· To be used in devices with potential free contacts
PSIA -DSIA
· Control for detection of turbulences in liquids
· Delay to the level detection
· Control differential maximum and minimum levels by timing
· To be used in devices with potential free contacts
+
CONFIGURATOR:
Power supply
Version
Internal mode protection
Process connection
Float
Ø28X28
The float must be smaller in diameter than the process connection.
Length (mm)
Number of contacts
The number of contacts depends on the operation to be performed.
Number of floats
1
It remains to be decided
Select a product to display its configuration data
Reference
aaaa
CodeWeight (kg)Dimensions (mm)
Delivery time
The delivery time is expressed in working days. It... [Know more]
· For the detection of one or more level points.
· Used in maneuvers for filling, emptying, overfill alarm, etc.
· Because of its small size is ideal for tanks with limited space.
· Custom fabrication to suit the installation conditions.
-Technical data
· Includes control maneuver with relay output
· Output: Relay SPDT 6 A / 250 VCA
· Process connection: Clamp flange. 1"..1"1/2
· Electrical connection: Connection housing. PBT
· Protection: IP67
+ Documentation
· Data sheet
· Declaration of conformity CE
· User manual
· 3D file [.ZIP]
· Safety, installation and maintenance instructions
+Ordering
· Determine the total length according to the characteristics of the tank and the liquid level you want to control.
· Check that the conditions of pressure and temperature of the installation match with the ones allowed by the model chosen.
· According to the maneuver you wish to perform, determine the amount, location and type of contacts. See Table of Connection Diagrams for more information.
· If you have questions about the chemical behavior of materials in contact with the liquid you want to control, refer to Table of chemical resistance.
· For all options, see the table "Reference" in the technical documentation of the selected model.
